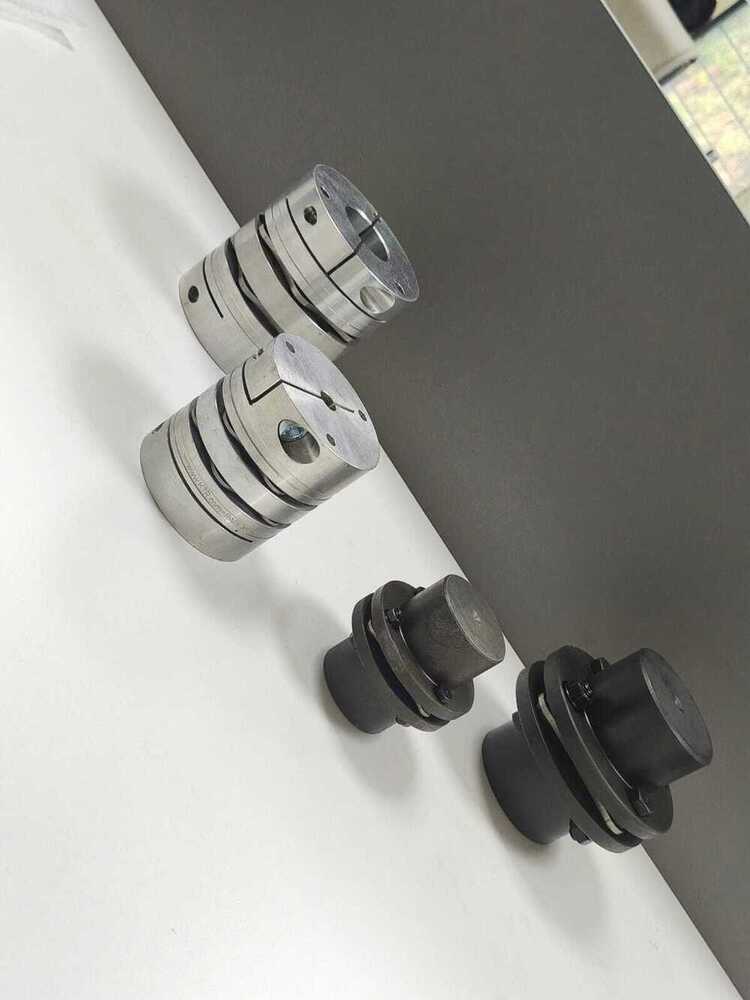

Disc coupling

Name: Disc coupling
Brand: S K SALES AND SERVICES / SK TECH
Price: 11000 INR
Availability: InStock

11000 INR/Piece

Get a Price/Quote

Product Details:

Max. Speed Up to 8,000 RPM
Connection Shaft-to-shaft
Bore Pilot bore or custom bore as per requirement
Torque Up to 20,000 Nm (varies by size)
Head Code Round
Sealing Non-sealing type
Material High-grade alloy steel or stainless steel
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Disc coupling Price And Quantity

Price 11000 INR/Piece
Minimum Order Quantity 1 Piece

Number of Discs Single and double disc models available
Temperature Range -20C to +200C
Noise Low noise
Misalignment Compensation Axial, angular, and parallel misalignment
Corrosion Resistance High, suitable for harsh environments
Flexibility High torsional flexibility
Weight Varies by size and material; typically 2 kg to 15 kg
Installation Easy to install and align
Balance Dynamically balanced for high-speed operation
Maintenance Maintenance-free operation

Disc coupling Product Specifications

Outer Diameter 70 mm to 250 mm (customizable)
Connection Shaft-to-shaft
Shape Round
Technique Machined
Bore Pilot bore or custom bore as per requirement
Standard ANSI/AGMA compliant
Inner Diameter 25 mm to 100 mm (customizable)
Max. Speed Up to 8,000 RPM
Head Code Round
Sealing Non-sealing type
Application Mechanical power transmission, Industrial machinery, Pumps, Compressors, Generators
Structure Disc type with multiple metal plates
Surface Treatment Black oxide finish
Torque Up to 20,000 Nm (varies by size)
Material High-grade alloy steel or stainless steel

Number of Discs Single and double disc models available
Temperature Range -20C to +200C
Noise Low noise
Misalignment Compensation Axial, angular, and parallel misalignment
Corrosion Resistance High, suitable for harsh environments
Flexibility High torsional flexibility
Weight Varies by size and material; typically 2 kg to 15 kg
Installation Easy to install and align
Balance Dynamically balanced for high-speed operation
Maintenance Maintenance-free operation

Product Description

Explore the acclaimed disc coupling meticulously engineered for outstanding misalignment compensation-axial, angular, and parallel. Crafted from potent high-grade alloy steel or stainless steel, this coupling delivers unbeatable corrosion resistance and thrives in harsh environments. Its maintenance-free operation, low noise, and high torsional flexibility make it ideal for demanding applications in pumps, compressors, generators, and industrial machinery. Dynamically balanced for high-speed use (up to 8,000 RPM) and torque up to 20,000 Nm, it comes in single or double disc models, easily installed and aligned for superior performance. Order now from India's trusted manufacturers, suppliers, and wholesalers.

Disc Coupling Versatility & Application Method

Disc couplings offer exceptional adaptability for a range of application surfaces, seamlessly connecting shafts in mechanical power transmission systems. Their machined, round structure with either pilot or custom bore ensures precision installation across various application areas-including industrial machinery, pumps, compressors, and generators. Installation is straightforward, requiring minimal alignment for optimal performance. Thanks to a robust black oxide finish, these couplings deliver lasting reliability on surfaces exposed to harsh operational environments.

Disc Coupling Packaging and Order Processing

Order processing for disc couplings ensures reliable and secure packaging, safeguarding each unit against corrosion and damage during transit. Products are packed with careful attention based on size and material, typically ranging from 2 kg to 15 kg. Samples are available upon request, with a nominal charge applied. The usual FOB port for shipments is located in India, facilitating swift and efficient logistics. Retailers, wholesalers, and suppliers can access tailored packaging solutions to meet specific requirements.

FAQ's of Disc coupling:

Q: How does the disc coupling compensate for different types of misalignment?

A: The disc coupling is engineered to compensate for axial, angular, and parallel misalignment, allowing connected shafts to transmit power while minimizing stress and vibration. Its flexible disc structure enables effective torque transmission even in challenging alignment conditions.

Q: What industry standards do these disc couplings meet?

A: These couplings comply with ANSI/AGMA standards, ensuring compatibility and quality for use in industrial machinery, pumps, compressors, and generators.

Q: When is it recommended to select a double disc model over a single disc model?

A: A double disc model is advisable when additional flexibility and higher misalignment compensation are required, especially in applications where there is greater shaft movement or angular deviation during operation.

Q: Where can these disc couplings be used, considering their corrosion resistance?

A: With high corrosion resistance and a black oxide finish, these couplings are suitable for harsh environments such as chemical plants, offshore installations, and applications exposed to moisture or chemicals.

Q: What is the usual process for ordering and receiving disc couplings?

A: After submitting your requirements to the manufacturer or supplier, your order is processed, packaged securely, and shipped from the FOB port in India. Samples are available with a nominal charge for pre-purchase evaluation.

Q: What benefits does maintenance-free operation provide for disc couplings?

A: A maintenance-free design reduces downtime, eliminates the need for regular lubrication or monitoring, and enhances productivity in continuous or remote operations.
