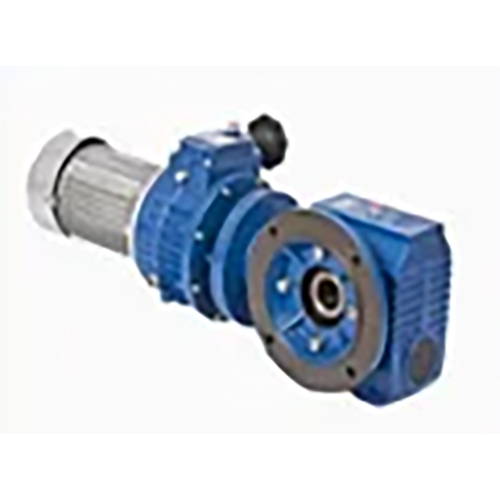

Helical Worm Gear Motor

Get a Price/Quote

Product Details:

Efficacy High
Cooling Method Self-cooled / Fan cooled
Standard IS/IEC 60034-1
Torque up to 1250 Nm
Features High efficiency, compact design, low maintenance
Rated Voltage 415 V
Rated Frequency 50 Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Helical Worm Gear Motor Price And Quantity

Minimum Order Quantity 1 Piece

Overload Capacity Up to 150% rated load
Output Shaft Type Solid / Hollow
Housing Material Cast Iron / Aluminum
Frame Size 63 to 160
Gear Ratio Up to 1:100 (customizable)
Insulation Class F
Lubrication Synthetic Oil lubricated
Duty Type S1 (Continuous)
Input Speed 1400 rpm
Efficiency Class IE2 / IE3
Mounting Position Horizontal / Vertical

Helical Worm Gear Motor Product Specifications

Protect Feature Totally enclosed fan cooled (TEFC)
Shaft Diameter Up to 65 mm (varies by model)
Efficacy High
Power 0.25 HP to 10 HP
Mounting Type Foot Mounted / Flange Mounted
Standard IS/IEC 60034-1
Cooling Method Self-cooled / Fan cooled
Rated Voltage 415 V
Features High efficiency, compact design, low maintenance
Torque up to 1250 Nm
Poles Number 4
Voltage 415 V
Starting Type Direct-On-Line (DOL)
Rated Frequency 50 Hz
Output Power 0.18 kW to 7.5 kW
Ambient Temperature -10C to +50C
Sealed Type Oil Sealed
Noise Level Low Noise
Color Blue/Grey
Speed Up to 300 RPM (output-variable depending on ratio)
Motor Type Helical Worm Gear Motor
Pressure Standard Atmospheric
Weight Varies by model (approx. 20 kg - 150 kg)
Horse Power 0.25 HP to 10 HP
Product Type Helical Worm Gear Motor
Power Rating 0.18 kW to 7.5 kW
IP Rating IP55
Bearing Type Ball / Roller Bearing
Dimension (L*W*H) Depends on model (contact supplier for exact)
Current Type AC
Frequency (MHz) 50 Hz
Phase Three Phase

Overload Capacity Up to 150% rated load
Output Shaft Type Solid / Hollow
Housing Material Cast Iron / Aluminum
Frame Size 63 to 160
Gear Ratio Up to 1:100 (customizable)
Insulation Class F
Lubrication Synthetic Oil lubricated
Duty Type S1 (Continuous)
Input Speed 1400 rpm
Efficiency Class IE2 / IE3
Mounting Position Horizontal / Vertical

Helical Worm Gear Motor Trade Information

Supply Ability 100 Piece Per Month
Delivery Time 10 Days

Product Description

Experience the inestimable efficiency of our top-ranking Helical Worm Gear Motor-available in limited stock for instant savings! Crafted with brilliant precision, these units feature customizable gear ratios (up to 1:100) and frame sizes from 63 to 160. Each motor is engineered with synthetic oil lubrication, robust cast iron or aluminum housing, and solid/hollow shaft options. With IE2/IE3 class, S1 duty, and overload support up to 150%, this AC-powered, totally enclosed, and oil-sealed motor delivers high efficacy and reliability. Procure yours now-trusted by manufacturers, retailers, and suppliers across India!

Exceptional Material Quality & Versatile Applications

Manufactured using premium cast iron or lightweight aluminum housing, the Helical Worm Gear Motor ensures lasting durability and minimal maintenance. Its synthetic oil lubrication enhances performance and lifespan. Installation is flexible-opt for horizontal or vertical mounting, with solid or hollow output shafts. Suitable for conveyors, mixers, lifts, and a myriad of industrial setups, the compact design adapts effortlessly, making integration seamless in existing processes while maintaining a low noise profile.

Sample Policy, Certifications & Timely Delivery Assured

A nominal charge applies for samples, with cost estimates tailored upon inquiry. Helical Worm Gear Motors are backed by IS/IEC 60034-1 certification, assuring adherence to international standards and quality benchmarks. Customers can expect premium service, with delivery times dependent on order volume and customization requirements. Our dedicated team ensures timely dispatch and proactive updates so you receive your product exactly when needed, maintaining efficiency throughout the procurement process.

FAQ's of Helical Worm Gear Motor:

Q: How do I determine the correct gear ratio for my application?

A: Assess the torque and speed requirements of your machinery to select a suitable gear ratio. Our technical team is available to assist with customization for optimal performance.

Q: What are the main benefits of using the Helical Worm Gear Motor in industrial setups?

A: These motors offer high efficiency, robust durability, low maintenance, and quiet operation, making them ideal for continuous industrial use and diverse applications.

Q: When can I expect delivery after placing my order?

A: Delivery timelines are estimated based on order size and customization. Most standard units are dispatched promptly, while custom specifications might take longer. Our team will provide precise delivery details upon order confirmation.

Q: Where is the Helical Worm Gear Motor commonly used?

A: It's widely implemented in sectors such as manufacturing, material handling, mining, and processing plants for applications like conveyors, mixers, and lifts.

Q: What certifications do these motors have?

A: Each unit conforms to IS/IEC 60034-1 standards, ensuring consistent quality and operational reliability.

Q: How is the motor installed and what mounting options are available?

A: The motor can be mounted horizontally or vertically and is compatible with both foot and flange mounting systems for versatile installation.
